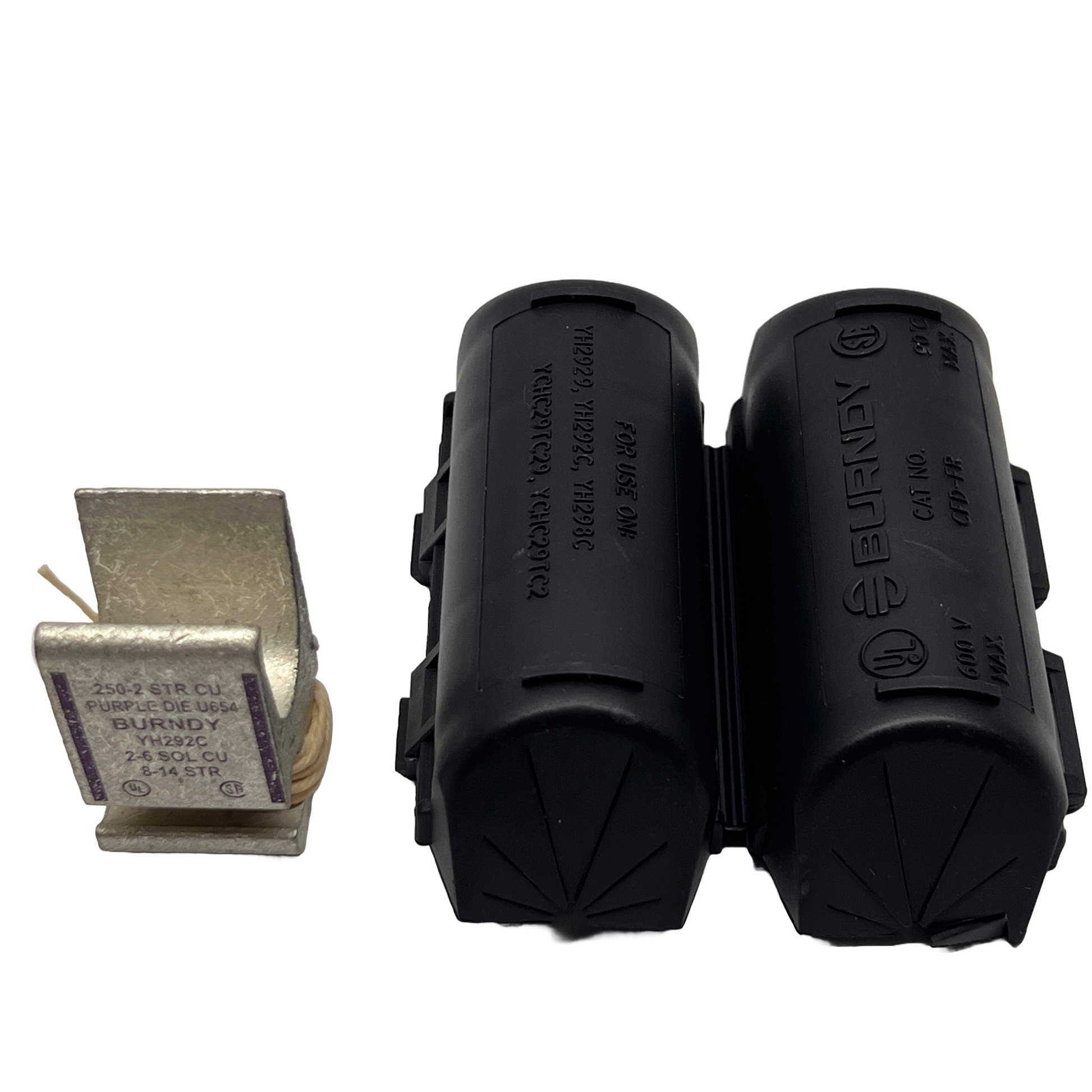

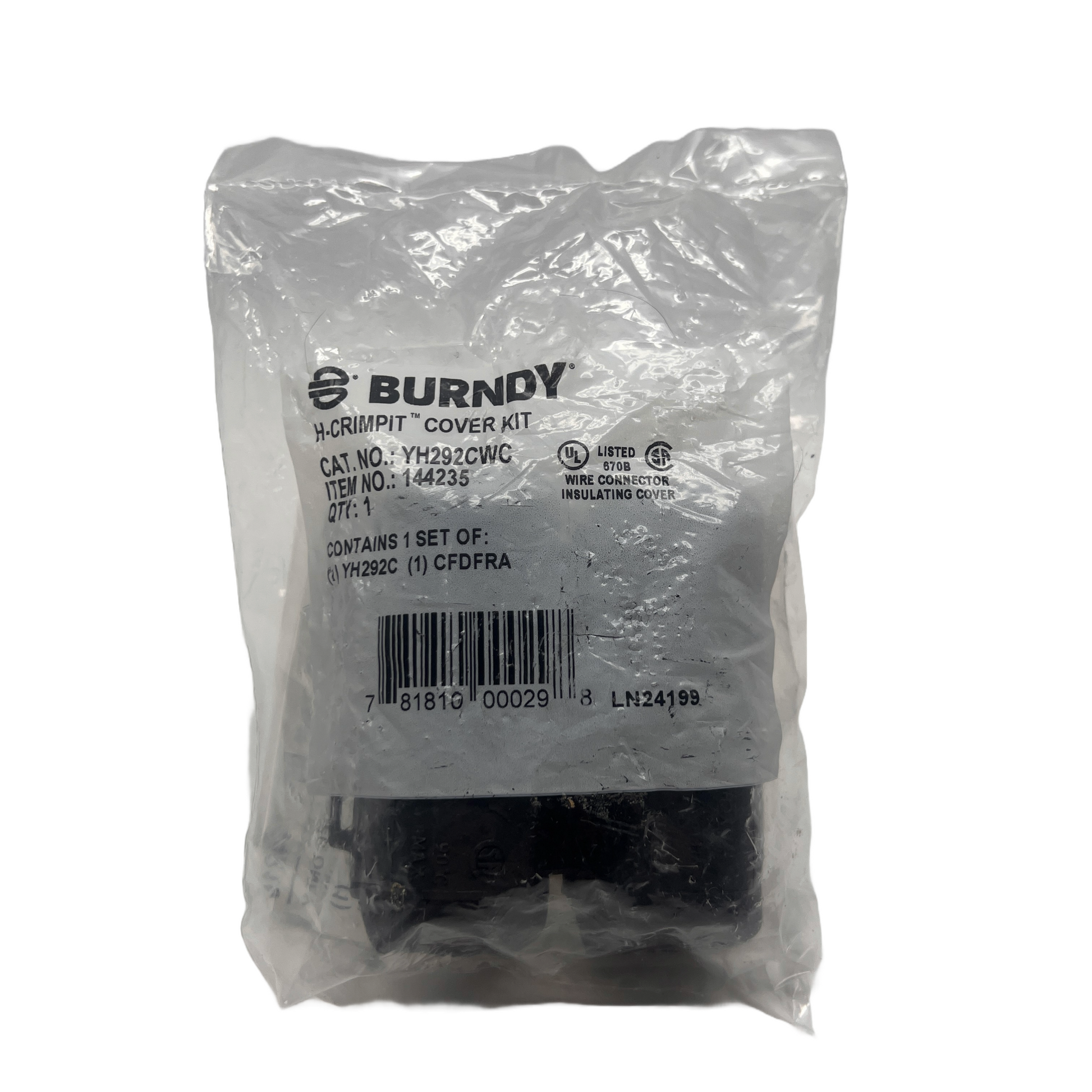

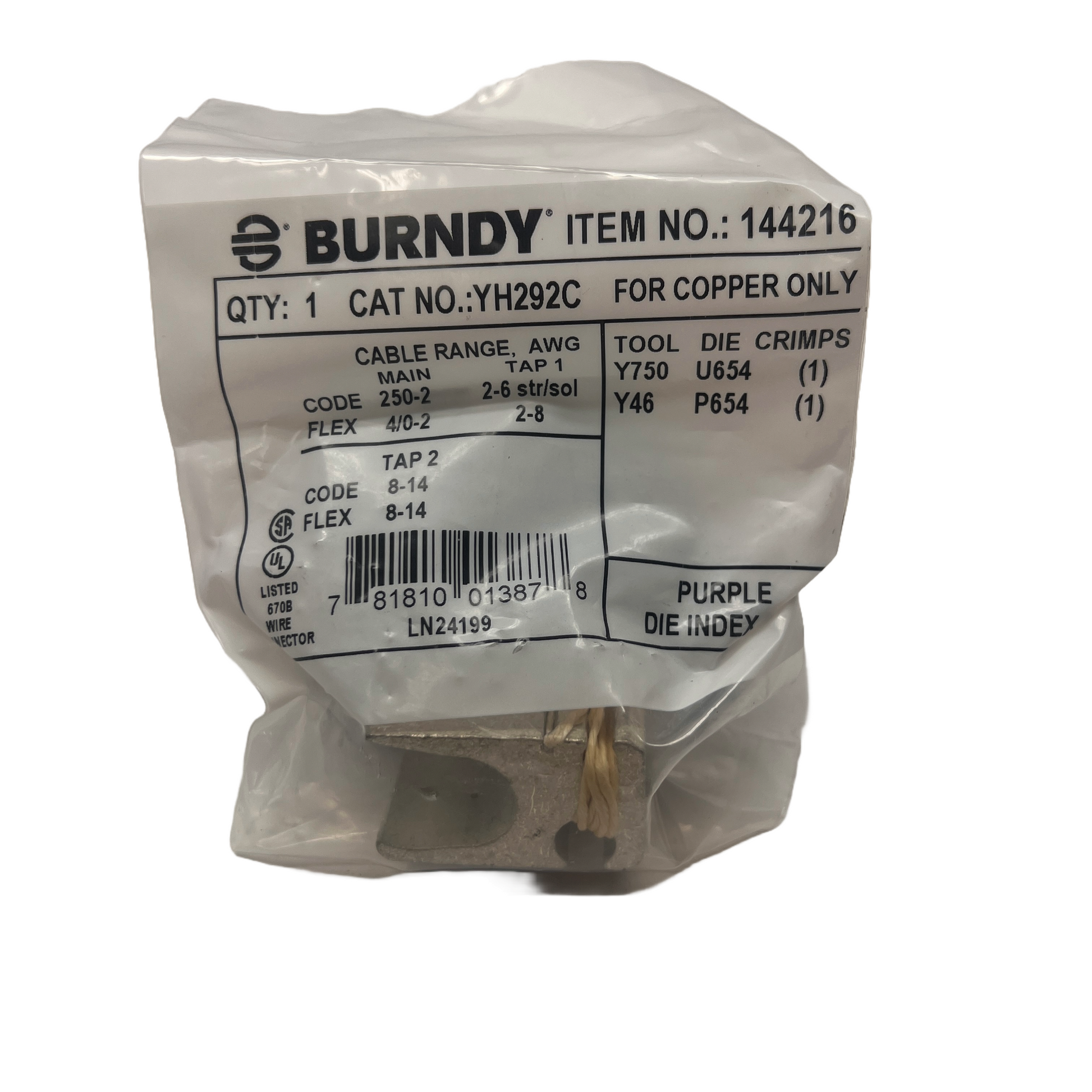

Burndy YH292CWC 144235 H-Crimpit Cover Kit Copper H-TAP kit of YH292C and CFDFRA
Burndy YH292CWC 144235 H-Crimpit Cover Kit Copper H-TAP kit of YH292C and CFDFRA
Regular price
$ 17.99 USD
Regular price
Sale price
$ 17.99 USD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Burndy
YH292CWC 144235
H-Crimpit Cover Kit
(set of YH292C and CFDFRA)
2 AWG min. Run Conductor Size; 250 kcmil Max. Run Conductor Size; 6 AWG (Tap-1), 14 AWG (Tap-2) min. Tap Conductor Size; 2 AWG (Tap-1), 8 AWG (Tap-2) Max. Tap Conductor Size; H Shape; Copper Conductor Material; UL, CSA Approval
| UPC: | 78181000029 |
| Minimum Tap Conductor Size: | 6 AWG (Tap-1), 14 AWG (Tap-2) |
| Maximum Tap Conductor Size: | 2 AWG (Tap-1), 8 AWG (Tap-2) |
| Die Index: | 654 |
| Body Material: | Electro-Tin Plated Copper |
| Approval: | UL, CSA |
| Additional Information: | RoHS Compliant; Color Code Purple; Includes Cover |
| Catalog Number: | YH292CWC |
| Brand Name: | CRIMPIT[TM] |
| Model: | Type YH |
| Shape: | H |
| Number of Taps: | 2 |
| Conductor Material: | Copper |
| Minimum Run Conductor Size: | 2 AWG |
| Maximum Run Conductor Size: | 250 KCMIL |
| CATALOG DESCRIPTION: | COPPER COMPRESSION H TAP, TIN PLATED, ACCOMMODING THE FOLLOWING WIRE SIZES - RUN (MAIN): 250 KCMIL-2 AWG CLASS B,C, 4/0 AWG-2 AWG CLASS I, DLO; TAP 1: 2 AWG-6 AWG CLASS B, C, SOLID, AND 2 AWG-8 AWG CLASS I, DLO. SEE SALE DRAWING FOR METRIC WIRE SIZE ACCOMMODATES. |
| Category: | Large Terminals & Connectors |
| Full Technical Description: | 2 AWG min. Run Conductor Size; 250 kcmil Max. Run Conductor Size; 6 AWG (Tap-1), 14 AWG (Tap-2) min. Tap Conductor Size; 2 AWG (Tap-1), 8 AWG (Tap-2) Max. Tap Conductor Size; H Shape; Copper Conductor Material; UL, CSA Approval; Electro-Tin Plated Copper Body Material; 654 Die Index; 2 Tap(S); Crimpit Brand; RoHS Compliant; Color Code Purple; Includes Cover; TYPE YH Model |
| Made in USA: | Yes |
| Manufacturer: | Burndy Products |
| Manufacturer Brand: | Burndy Products |
| Product Description: | Burndy YH292CWC Copper H-Tap 250-#2 W/Cover |
| Proposition 65 Warning (CA): | Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Sub-Category: | Compression Cable Tap |
| UNSPSC: | 39121427 |
| UPC 12 Digit: | 781810000298 |
| Unique Product Key: | 5679400 |
| comm code enhanced: | 64120 |
