COMMSCOPE 760092379 MGS600 Orange GigaSpeed X10D RJ45 CAT6A Modular Jack 18 Each
COMMSCOPE 760092379 MGS600 Orange GigaSpeed X10D RJ45 CAT6A Modular Jack 18 Each
Couldn't load pickup availability
18 Each
COMMSCOPE 760092379
MGS600 Orange
GigaSpeed
X10D
RJ45 CAT6A
Modular Jack

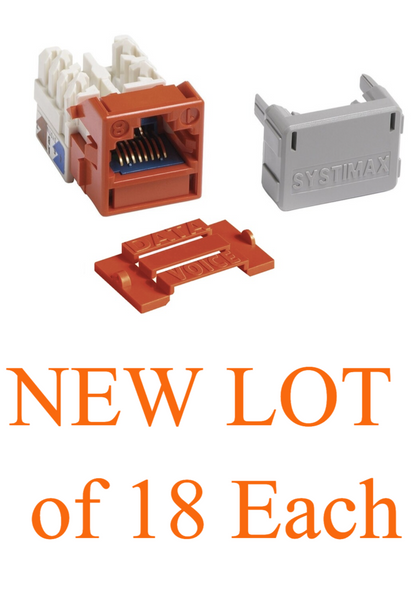

GigaSPEED X10D® M-Series Modular Jack, RJ45, Cat6A Unshielded, Orange
Electrical performance guaranteed to meet or exceed the channel specifications to ISO/IEC 11801 Class EA and ANSI/TIA-568-C.2 Category 6A
Patented crossing of straddling pair contacts enables efficient alien crosstalk reduction in the channel
Snaps into standard M-series faceplates, surface-mount boxes, consolidation point boxes and modular panels
Mountable either at 90 degrees (straight) or 45 degrees (angled) in M-series faceplate Universal design and label supports both T568 A & B wiring
IDC connector terminations on rear of base allow quick and easy installation of 22 to 24 AWG cable
Support network line speeds up to at least 10 gigabits per second
Low-profile rear protective strain connection relief cap, protects against contamination and secures the connection.
