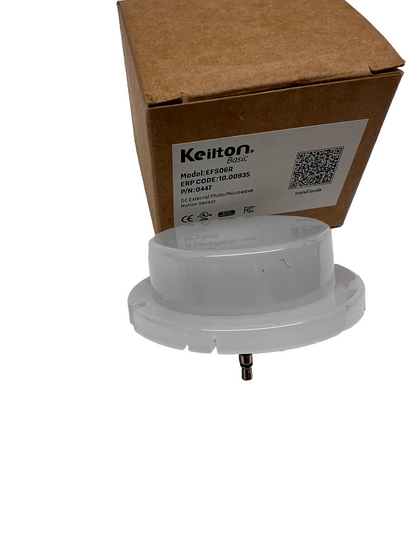

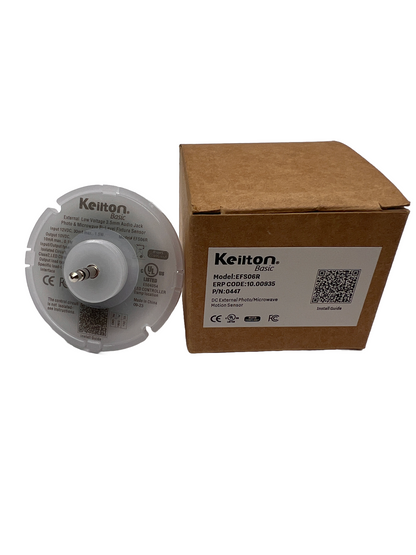

KeiltON EFS06R DC External Photo/Microwave Motion Low Voltage Fixture Sensor LED

Description

EFS06R is an external mount Photocell and Microwave sensor. It operates with a 0-10VDC dim-to-off LED driver with 12VDC Aux power socket. Models available for 3.5mm AUX and BH4 sockets (not inlcuded).

Features

· 0-10V Bi-level dimming control.
· 3.5mm Audio jack, save the installation cost at most.
· Operates on 12V DC which can be easily feed from a LED driver, saves OEM cost on

manufacturer side.
· Perfectly fit in UFO high bays, area lights and wall packs that have limit to mount a

external sensor.
· 6 modes, 10%-100% dimming level, 30"-30' delay time selectable allowed to

customize your setting.
· IP66 rated for outdoor fixtures.
· Programs setup by a Remote controller (RM51).

External Photo /Microwave Motion Sensor

Specifications

Input Voltage

Input Current

Input Power

Output Current

Output Power

Dimming

Sinking Current

Housing Material

Detection Range

Mounting Height

Operating Temperature

Storage Temperature

IP Rating

Color

Warranty

Compliance

Safety

DC 12V

30mA

1.5W

10mA Max

0.1W

Class 2, 0-10V DC 10mA Max

10mA Max

UL 94-5VA, Indoor / Outdoor Use

32-46ft

20-40ft

-30°C to 55°C, -22°F to 131°F

-30°C to 85°C, -22°F to 185°F

IP66

White/Black

5 years warranty

UL8750, RoHs

cULus Listed LED Controller E504054
