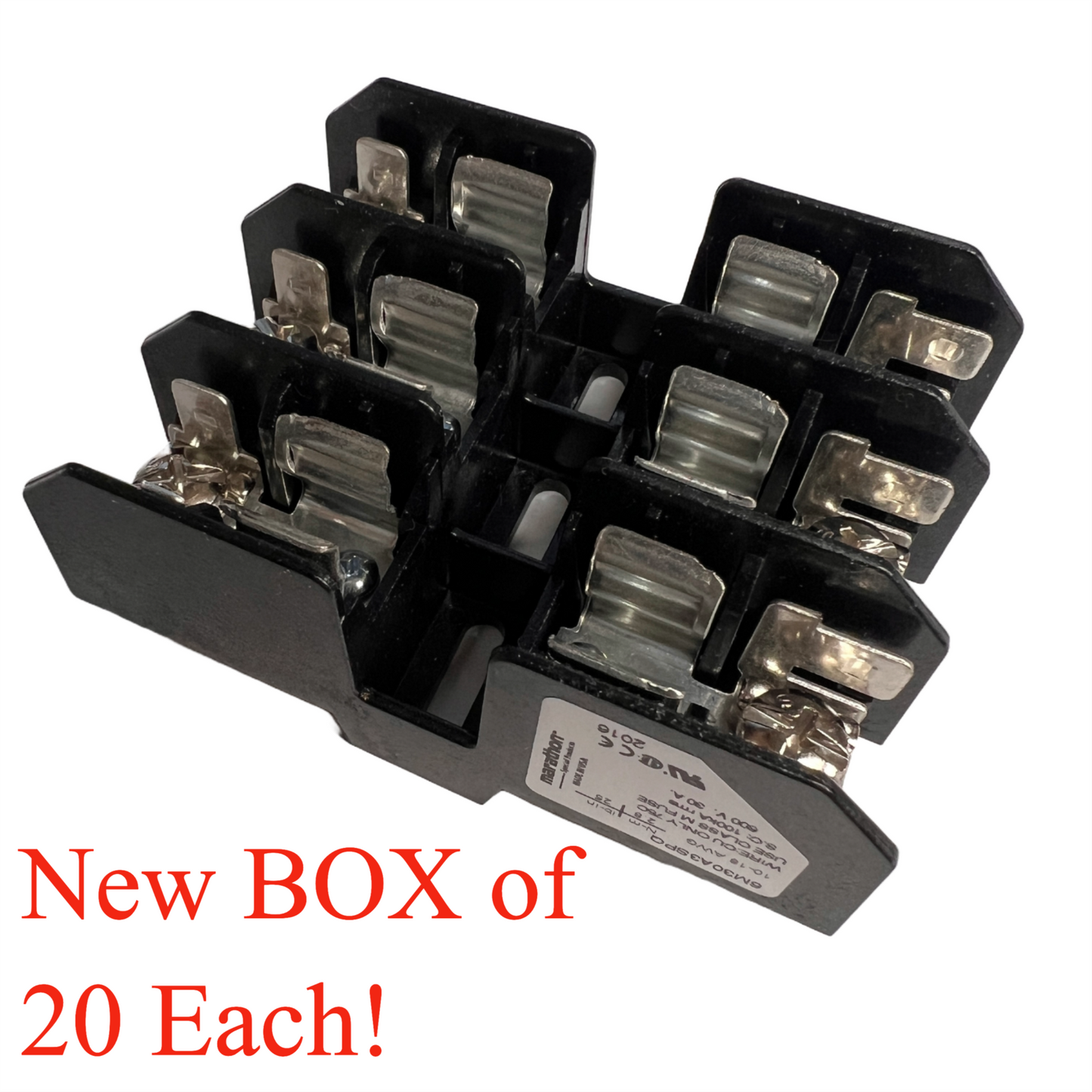

Marathon 6M30A3SPQ Fuse Holder 3 Fuses 600V/30A Class M BOX of 20 Each New
Marathon 6M30A3SPQ Fuse Holder 3 Fuses 600V/30A Class M BOX of 20 Each New
Couldn't load pickup availability
Listing is for ONE BOX of 20 Each!

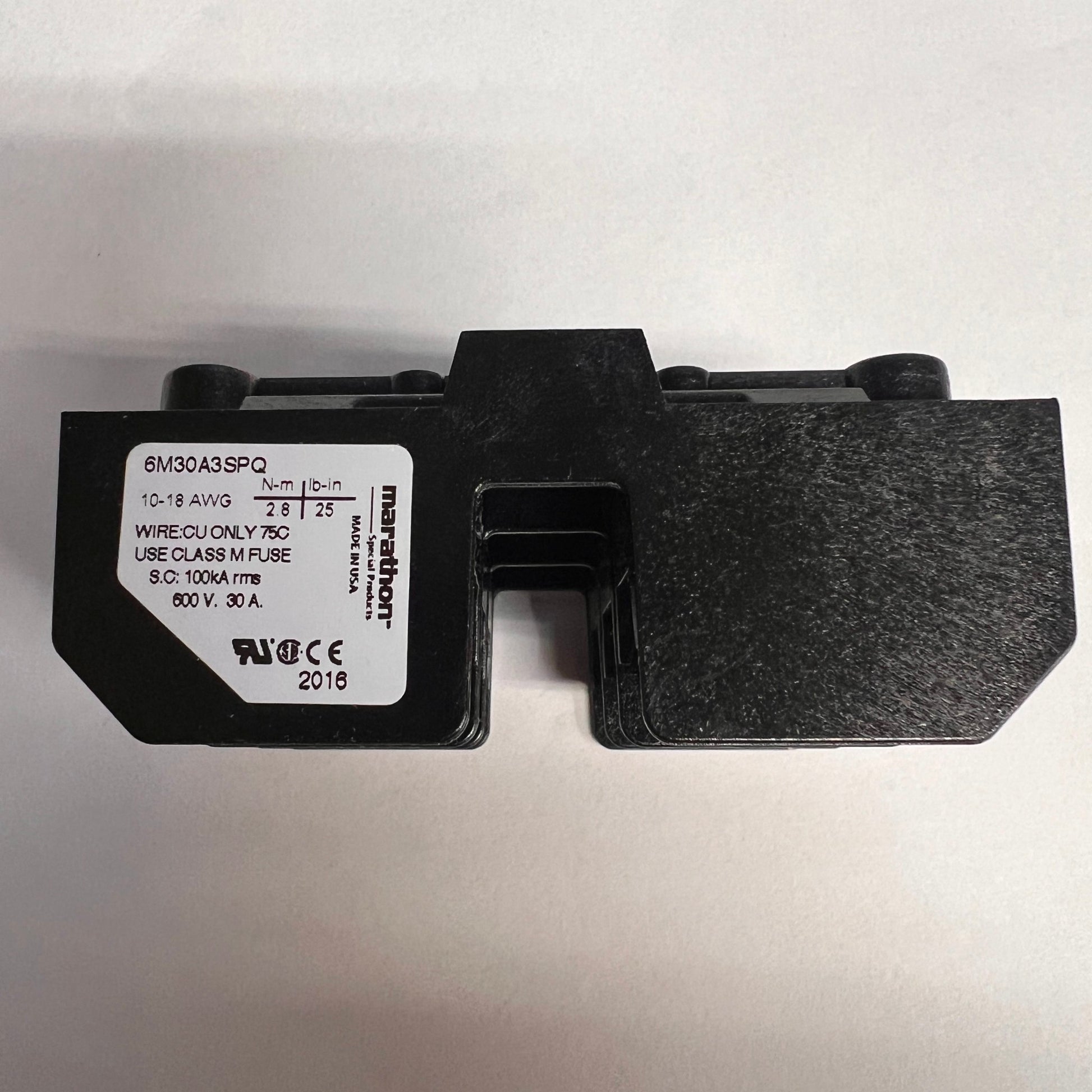

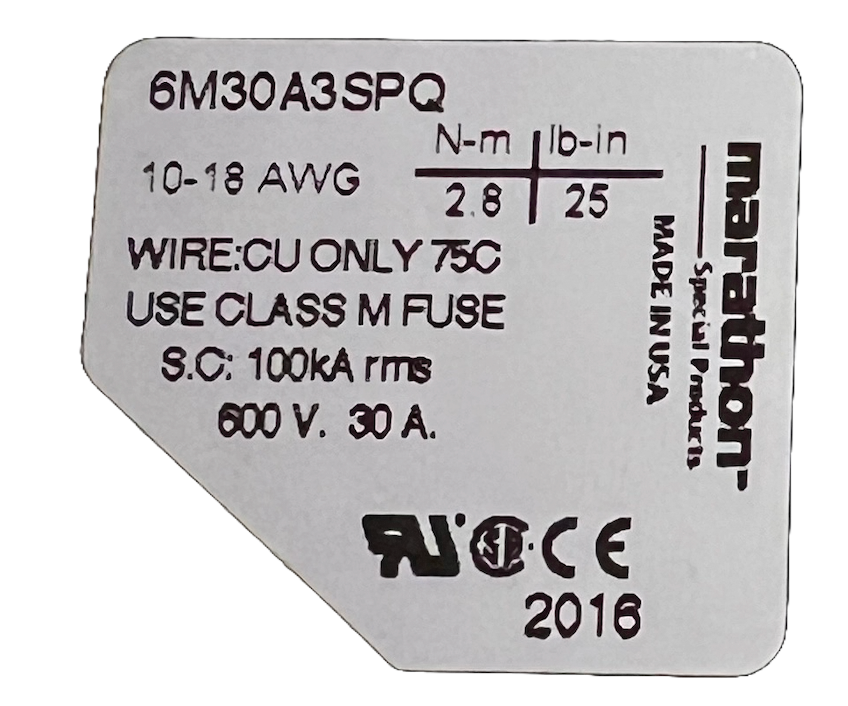

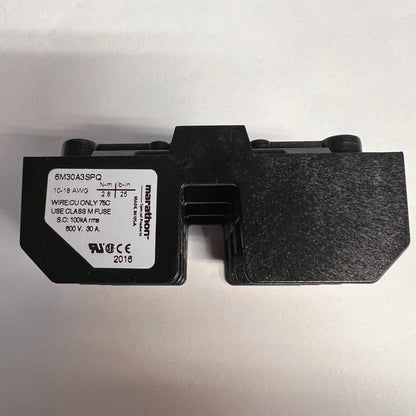

Marathon 6M30A3SPQ
Fuse Holder
3 Fuses
600V/30A
Class M
The Marathon 6M30 Series class M base-mount fuse holders can be used for various applications including control panels, lighting, heating, air conditioning, refrigeration equipment, and transformer protection.
Class M Fuse Holder
30 Amps, 600 Volts AC/DC
Wire Range:
#10 - #18 AWG
Holds fuse size 13/32” diameter X 1 1/2”
Commonly used fuses in this holder: A13X-2, A25Z-2, A60Q-2, A6Y-2B, AGU, ATM, ATQ, BAF, BAN, BLF, BLN, BLS, FLA, FLM, FLQ, FNM, FNQ, GFN, GGO, KLK, KLKD, KLQ, KTK, OTM, TRM
See table below for wire sizes.
Electrical Ratings:
• 0 - 30A max (amperage rating based on maximum fuse rating for that physical size) • Copper wire only
• 600 Volts AC/DC
• Approved for 100,000 Amp Withstand Rating
Mechanical Ratings:
• Insulator base temperature rating: -40°C/F to 125°C (257°F) UL RTI
• Flammability rating of insulator base: UL 94 V-0
• Touch protection: IP-20 (IEC 60529) with optional cover CCM630 (See accessories)
• Use outside these ratings needs to be judged in the end-use application.

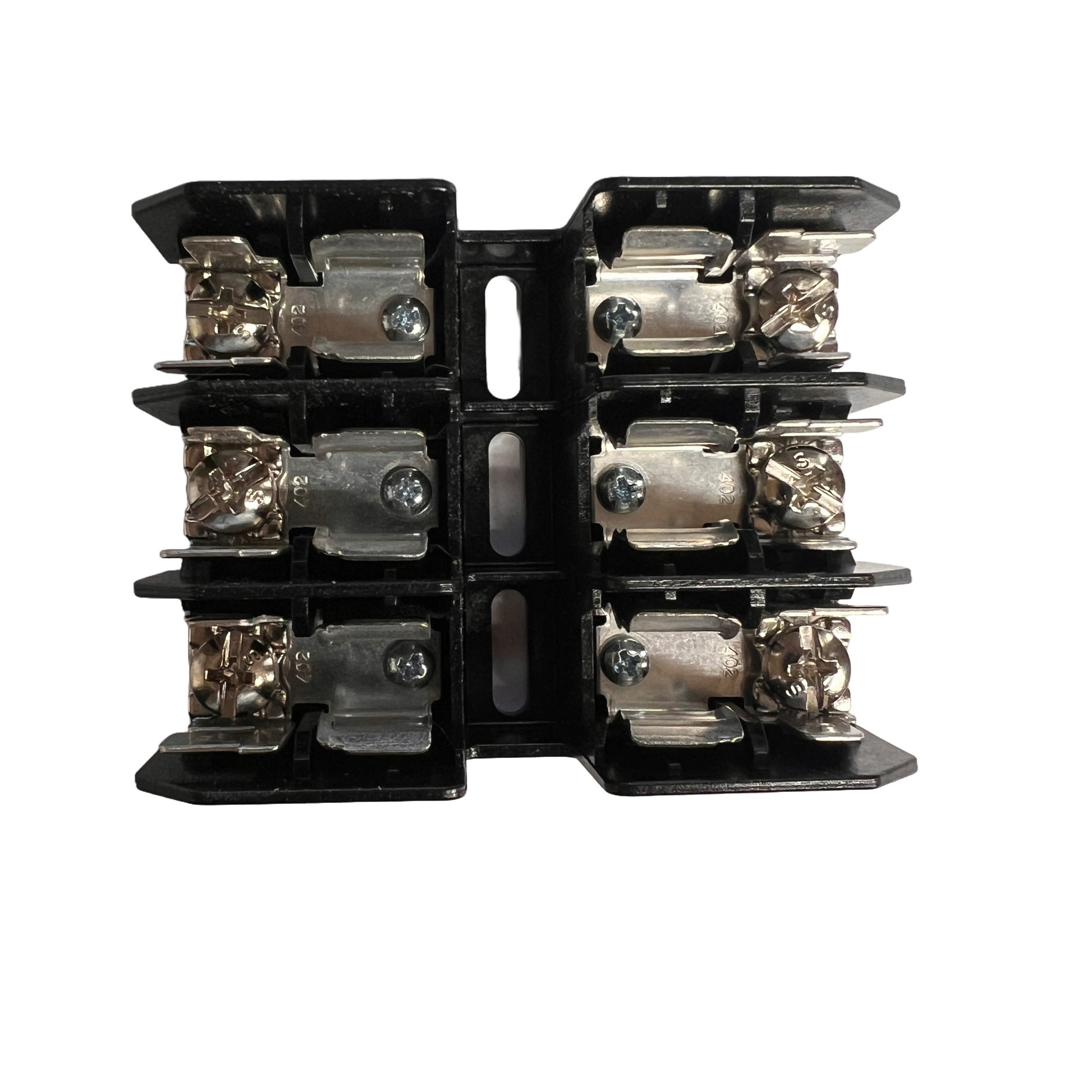

Materials:
• Fuse Clip: Copper alloy, tin plated
• Box Connector: High conductivity aluminum, tin plated
• Insulator base: Glass filled polycarbonate (thermoplastic)
• Straddle plate thread forming #10-32 screws: Steel, tin plated • Fuse Clip anchor screws: Steel, zinc plated
Agency Approvals:
• UL Recognized, Fuseholder standards UL 4248-1.
• UL File No. IZLT2.E35113
• CSA Certified, CSA C22.2 No. 4248.1-07, File No. LR21455
