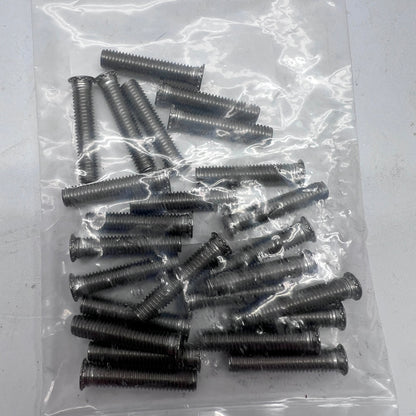

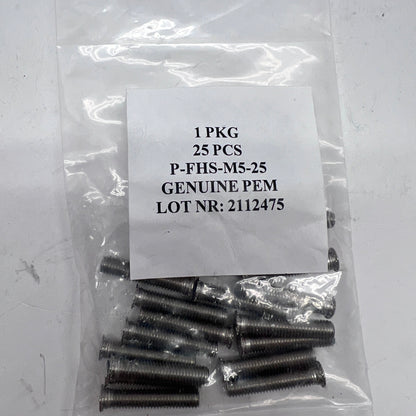

PEM FHS-M5-25 Stud Flush Screw Inserts Stainless Steel M5 Thread lot of 50 each
PEM FHS-M5-25 Stud Flush Screw Inserts Stainless Steel M5 Thread lot of 50 each
Regular price
$ 14.99 USD
Regular price
Sale price
$ 14.99 USD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
| Product Attribute | Attribute Value | Select Attribute |
|---|---|---|
| PEM | ||
| Product Category: | Screws & Fasteners | |
| RoHS: | Yes | |
| Studs | ||
| Self Clinching | ||
| M5 x 0.8 | ||
| 1 in | ||
| Stainless Steel | ||
| Zinc | ||
| Flush Head | ||
| Brand: | PEM | |
| Product Type: | Screws & Fasteners | |
| Series: | FHS | |
| Quantity in Lot | 50 | |
| Subcategory: | Hardware | |
| Tradename: | PEM |

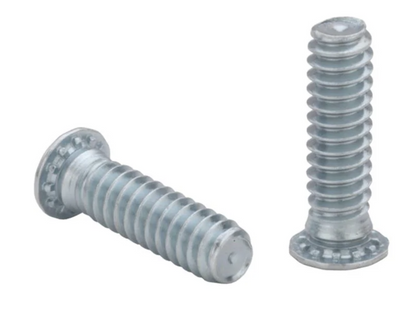

Self-Clinching Threaded Studs – Type FHS

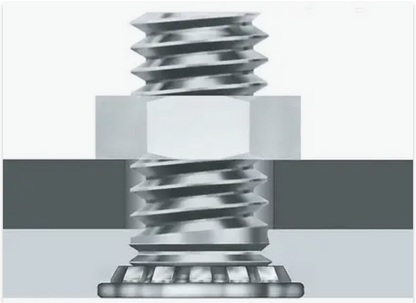

PEM® self-clinching studs are installed by placing them in properly sized holes in the sheets and squeezing into place with any standard press. The squeezing action embeds the head of the stud into the sheet. The metal displaced by the head flows smoothly and evenly around the ribs and into the annular groove – creating a flushhead assembly and securely locking the stud into the sheet with high torque-out and pushout resistances. Type FHS is recommended for use in steel or aluminum sheets HRB (Rockwell “B” scale) 70 or less and HB (Hardness Brinell) 125 or less.
- Thread Code
- M5
- Thread Size X Pitch
- M5 x 0.8
- For Use in Sheet Hardness
- HRB 70 / HB 125 or Less
- Length Code
- 25
- Product Category
- Self-Clinching Threaded Studs – Type FH/FHS/FHA
- Thread Type
- PEM studs: Flush-head
- PEM Product Family
- FH

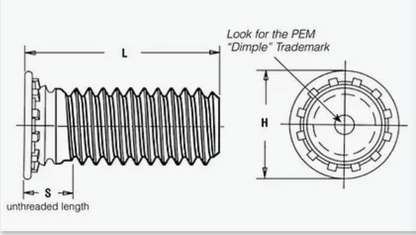

- H ± 0.4_mm
- 6.5mm
- Hole Size in Sheet + 0.08_mm
- 5mm
- L ± 0.4_mm
- 25mm
- Max. Hole in Attached Parts_mm
- 5.6mm
- Min. Sheet Thickness_mm
- 1mm
- S Max._mm
- 2.7mm
