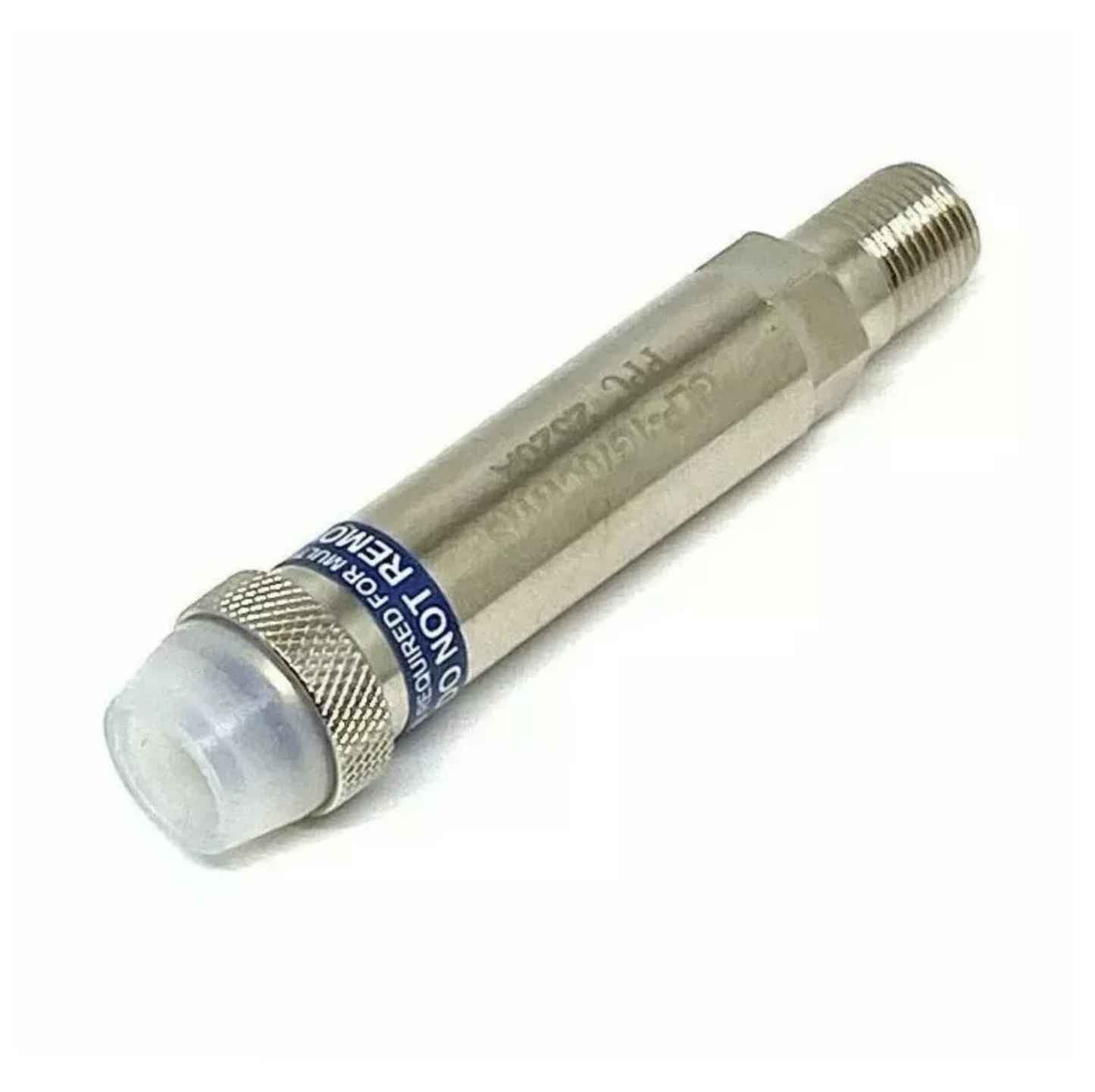

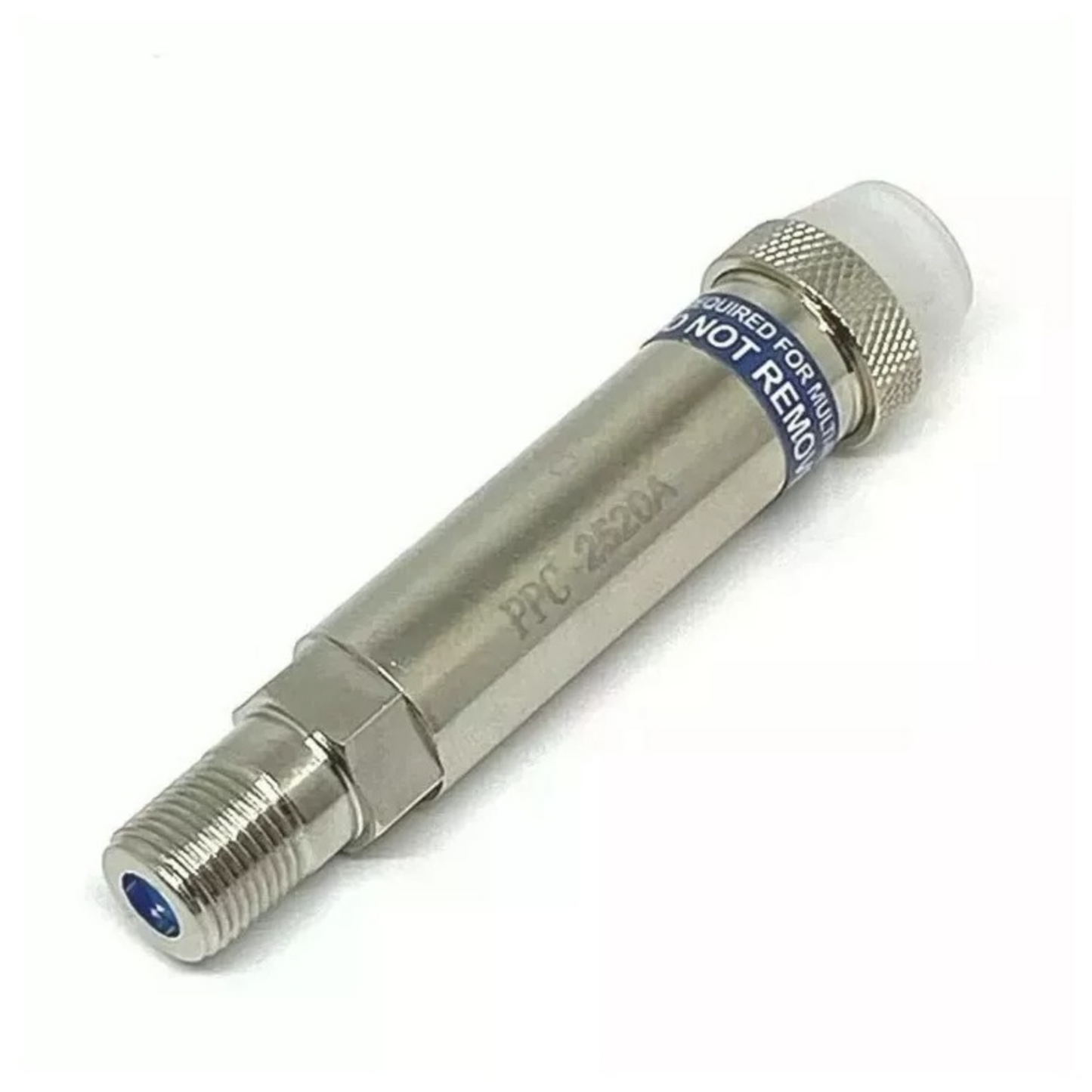

PPC Belden GLP-1G70CWWS MoCA POE Filter POE Filter for Cable TV & OTA

PPC Belden GLP-1G70CWWS MoCA POE Filter POE Filter for Cable TV & OTA

$ 7.90 USD
$ 7.90 USD
Sale Sold out
Taxes included.

Manufacturer: PPC Belden

About this item

  • Prevents interference between subscriber homes that use MoCA technology. Supports a 1GHz passband. Meets or Exceeds all MoCA Specifications. Enhances MoCA signal level within the subscribers home. Meets or exceeds all SCTE specifications.
  • MSO Approved by: Comcast Xfinity, Time Warner Cable, Cox Communications, Charter Communications, Cablevision, Optimum, WOW! and more.

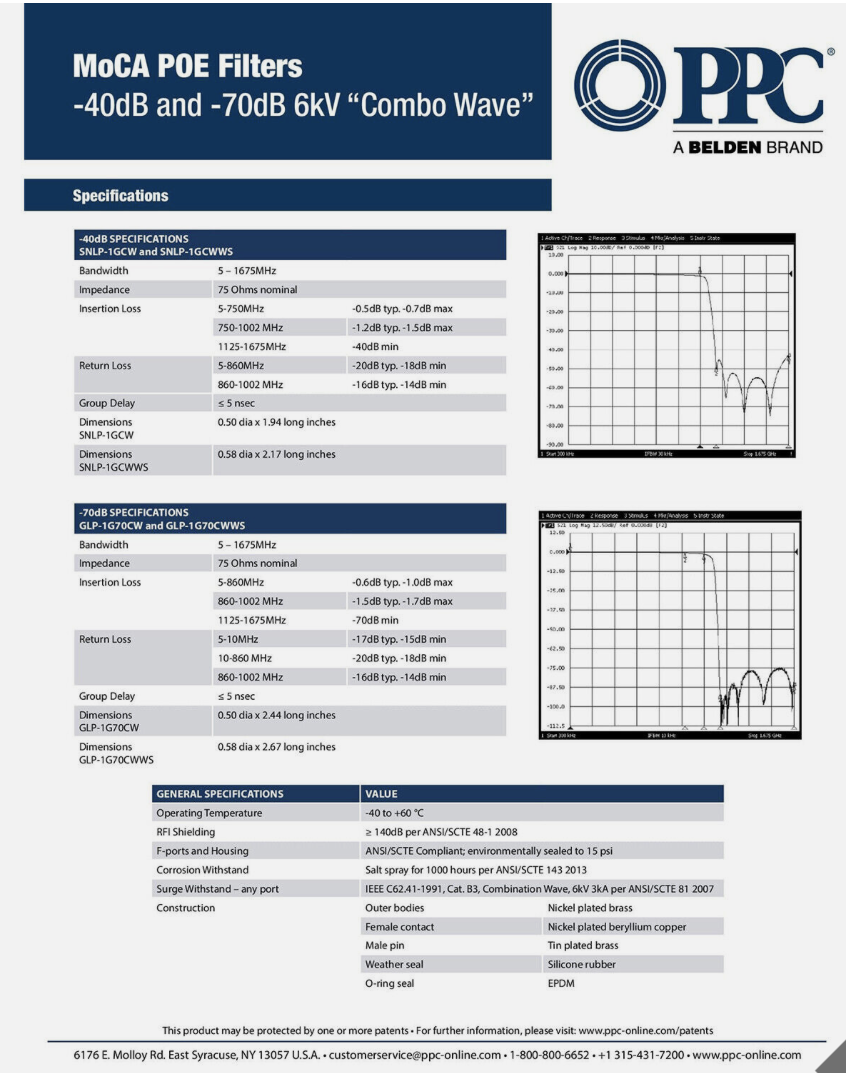

  • Bandwidth: 5 MHz to 1525 MHz, Impedance: 75 Ohms (nominal), Return Loss: 5-860 MHz -18 dB min 860-1002 MHz -14 dB min. Insertion Loss: 5-750 MHz -0.7 dB max 750-1002 MHz -1.5 dB max 1125-1525 MHz -40 dB min.
  • Group Delay: 5ns. Surge Withstand: 6 kV B3 Combo Wave. RFI Shielding: -140 dB.
  • Operating Temperature: -40 F to +140 F (-40 C to +60 C). Female Contact Retention Force: 200 grams. Physical Dimensions: 0.58" x 2.17"
Description: GLP-1G70CWWS MoCA POE Filter Cable TV
Condition Notes: New in sealed manufacture packaging.
Packaging Condition Details: Sealed Manufacturer's Packaging. Please see photos.
